5dBi PCB UHF RFID Antenna -80x80mm
PCB UHF RFID Antenna
Model: APRIA869605CE
Frequency Range: 860-960MHz
Polarization: Circular
Gain: 5dBi
Descriptions & Applications
Descriptions
- 860-960MHz
- 5dBi
- Circular Polarization
- 80*80*14mm
Applications
- Smart Retail
- Freezer Management
- Asset Management
- Filing Cabinet Management
Product Specifications
Electrical Specifications | |
Frequency | 860-960MHz |
Gain | 5dBi |
Beam width | Hor：160° Ver：95° |
Polarization | Circular |
VSWR | ≤1.5 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Antenna dimensions | 80*80*14mm |
Net weight | 0.023kg |
Gross weight | 0.04kg |
Antenna material | PCB |
Radome colour | Green |
Operating temperature | -40-85℃ |
Installation hole distance | 70*70mm |

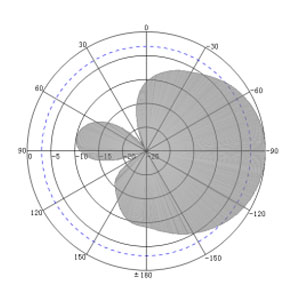

Antenna Pattern
H-Plane
E-Plane
Antenna Drawing
