21dBi 4900–6100MHz WIFI MIMO Panel Antenna
21dBi 4900–6100MHz WIFI MIMO Panel Antenna
Model: APMOPA4961HV22
Frequency Range: 4900-6100MHz
Polarization: Horizontal+Vertical
Gain: 22±0.5dBi
Product Descriptions
The 21dBi 4900–6100MHz WiFi MIMO Panel Antenna is engineered for high-capacity outdoor wireless networks that require focused coverage, strong signal isolation, and long-term stability. Designed for professional WiFi deployments, this antenna operates across the extended 5GHz band, supporting modern high-throughput wireless systems used by ISPs, system integrators, and industrial network operators.
With a narrow beamwidth and high front-to-back ratio, the antenna effectively concentrates RF energy toward target areas while minimizing interference from unwanted directions. Dual polarization (H+V) enables MIMO operation, improving link reliability, spectral efficiency, and overall network performance in dense or challenging RF environments.
Product Specifications
Electrical Specifications | |
Model | APMOPA4961HV22 |
Frequency Range | 4900-6100MHz |
Gain | 22±0.5dBi |
Horizontal Beamwidth | 8±3° |
Vertical Beamwidth | 8±3° |
F/B | ＞27dB |
dB | ≤-23dB |
VSMR | ≤2.0 |
Impedance | 50Ω |
Polarization | Horizontal+Vertical |
Max. Power | 50W |
Connector | 2xN-Female |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Dimension | 305*305*18mm |
Weight | 1.2kg |
Rated Wind Velocity | 36.9 m/s |
Operational Humidity | < 95％ |
Operating Temperature | -40～55℃ |
Radome Material | ABS |
Applications
Wireless ISP (WISP) access points
Point-to-point and point-to-multipoint links
Industrial wireless networks
Campus and enterprise outdoor WiFi coverage
Video surveillance backhaul systems
Ports, factories, and smart infrastructure networks
Features
High 21dBi Gain
Supports long-distance wireless links with improved signal strength and reduced link loss.MIMO Dual Polarization Design
Enhances throughput, signal diversity, and resistance to multipath fading.Focused Radiation Pattern
Narrow beamwidth improves interference control and maximizes usable coverage.Rugged Outdoor Construction
ABS radome, DC grounding, and wind-resistant structure ensure stable operation in harsh environments.Wide 4900–6100MHz Coverage
Compatible with multiple 5GHz WiFi bands, offering deployment flexibility worldwide.
Antenna Pattern

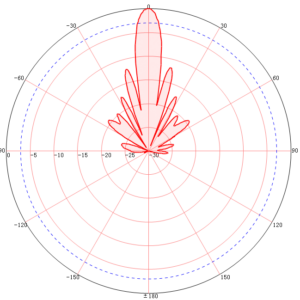

H-Plane

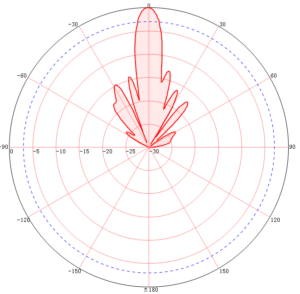

E-Plane
