2100-2500MHz 22dBi Dual Polarized Dish Antenna
2100-2500MHz 22dBi Dual Polarized Dish Antenna
Model: APPA212521HV
Frequency Range: 2100-2500MHz
Polarization: Horizontal+Vertical
Gain: 21±1dBi
Product Descriptions
The Dual Polarized Dish Antenna is engineered for high-performance outdoor wireless links operating in the 2100–2500MHz frequency range. Designed to deliver focused signal transmission with minimal interference, this antenna is ideal for point-to-point and long-distance communication scenarios where stability and link quality are critical.
With dual horizontal and vertical polarization, the antenna supports improved signal diversity and higher link reliability, making it well-suited for modern wireless networks that demand consistent throughput and resistance to multipath fading. Its high-gain directional design ensures efficient signal concentration, enabling extended coverage distances while maintaining excellent front-to-back ratio.
Built for outdoor deployment, the antenna features a robust mechanical structure and weather-resistant materials to ensure long-term operation in harsh environments, including high wind conditions and wide temperature ranges.
Product Specifications
Electrical Specifications | |
Frequency Range | 2100-2500MHz |
Polarization | Horizontal & Vertical |
Gain | 21 ± 1 dBi |
VSWR | ≤ 1.8 |
Horizontal Beamwidth | 14°± 2° |
Vertical Beamwidth | 14°± 2° |
F/B Ratio | ≥25dB |
Isolation | ≥23 dB |
Nominal Impedance | 50Ω |
Maximum Power | 50 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | 2xN-female with pigtail |
Mounting Mast Size | Φ40-85mm |
Dish Size | Φ 60cm |
Weight | 3.9kg |
Max. Wind Velocity | 210km/h |
Operating Temperature | -40~+65℃ |
Applications
Point-to-point wireless backhaul links
WISP network expansion and infrastructure deployment
Private wireless networks and enterprise connectivity
Industrial communication systems
Rural and remote area broadband access
Wireless surveillance and data transmission systems
Features
High-gain directional design for long-distance links
Dual polarization enhances signal stability and throughput
Narrow beamwidth reduces interference from adjacent networks
Excellent front-to-back ratio for cleaner signal performance
Durable construction for reliable outdoor deployment
DC grounding for enhanced lightning and surge protection

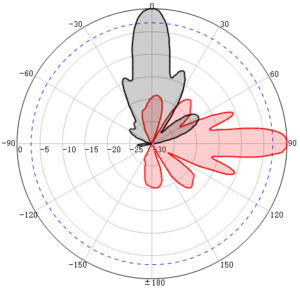

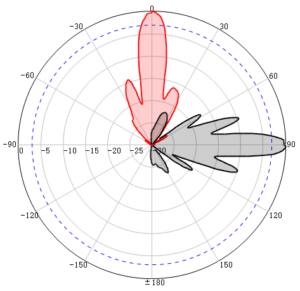

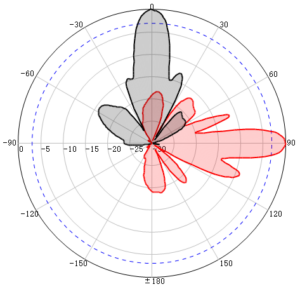

Antenna Pattern
2200MHz
H-Plane
E-Plane
2500MHz
H-Plane
E-Plane
