2.4GHz 20dBi Outdoor Panel Antenna
2.4GHz 20dBi Outdoor Panel Antenna
Model: APOPA2425V20
Frequency Range: 2400-2500MHz
Polarization: Vertical
Gain: 20±1dBi
Product Descriptions
The 2.4GHz 20dBi Outdoor Panel Antenna is engineered for long-range, high-performance wireless connectivity in challenging outdoor environments. Its optimized impedance matching and low VSWR ensure minimized signal loss, allowing network integrators to maintain consistent throughput even in areas with interference or long transmission distances.
Constructed with a robust ABS radome and designed to withstand high wind speeds and harsh climates, the antenna performs reliably in industrial, commercial, and remote outdoor installations. Its flat-panel structure enables simple alignment and flexible mounting, making it a practical solution for long-range WiFi extensions, IP surveillance backhaul, or outdoor AP expansion. Whether used in enterprise campuses or remote monitoring systems, this antenna provides the performance and durability required for continuous 24/7 operation.
Product Specifications
Electrical Specifications | |
Model | APOPA2425V20 |
Frequency Range | 2400-2500MHz |
Gain | 20±1dBi |
Horizontal Beamwidth | 15±3° |
Vertical Beamwidth | 16±3° |
VSWR | ≤1.5 |
Impedance | 50Ω |
Polarization | Vertical |
Max. Power | 50W |
Connector | N-Female |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Dimension | 390×390×50mm |
Weight | 2.3kg |
Rated Wind Velocity | 36.9 m/s |
Operational Humidity | < 95％ |
Operating temperature | -40～55℃ |
Radome material | ABS |
Applications
Building-to-building wireless bridges for campuses, warehouses, factories, and office parks
Long-distance WiFi distribution for farms, resorts, construction sites, and rural broadband
CCTV and security network backhaul supporting IP cameras in parking lots or perimeter zones
Outdoor access point enhancement to extend coverage in commercial plazas and public areas
Industrial IoT connectivity for telemetry, automation, and environmental monitoring systems
Features
Strong 20dBi directional gain for long-range connectivity and improved throughput
Narrow beamwidth to reduce interference and enhance point-to-point stability
Weather-resistant construction with ABS radome and support for extreme temperatures
Low VSWR design ensuring efficient signal transmission and reduced losses
Easy installation with a compact panel form factor suitable for poles and wall mounts
Antenna Pattern

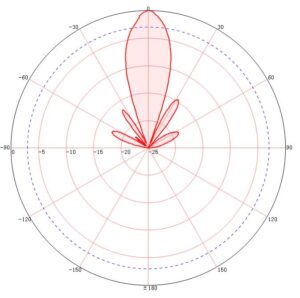

H-Plane

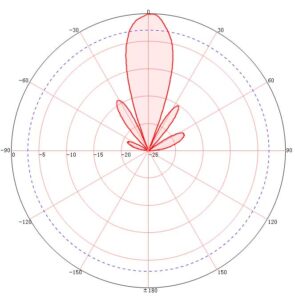

E-Plane
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this 2.4GHz 20dBi Outdoor Panel Antenna, or please check here for our more WIFI Antenna products.
