12dBi UHF RFID Reader Antenna with Enclosure
UHF RFID Reader Antenna with Enclosure
Model: APRIA90012CS
Frequency Range: 902-928MHz
Polarization: Circular
Gain: 12dBi
Descriptions
- 902-928MHz
- 12dBi
- Circular Polarization
- 440*440*95mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Electrical Specifications | |
Frequency | 902-928MHz |
Gain | 12dBi |
Beam width | Hor：45° Ver：45° |
Polarization | Circular |
VSWR | ≤1.3 |
F/B Ratio | ≥25 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |

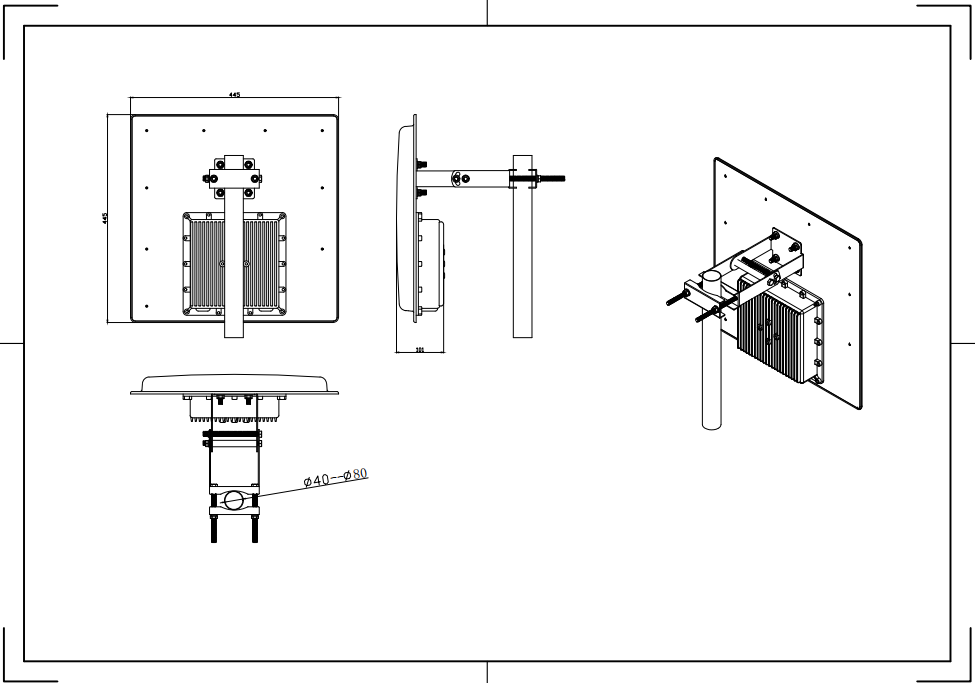

Mechanical Specifications | |
Dimension | 440*440*95mm |
Net weight | 2.8kg |
Packing size | 60*48*12cm |
Gross weight | 4.9kg |
Radome material | ABS |
Radome colour | White |
Pole Diameter | Φ40-80mm |
Rated wind velocity | 60m/s |
Operating temperature | -40-70℃ |
