10dBi UHF Integrated RFID Reader Antenna
10dBi UHF Integrated RFID Reader Antenna

UHF Integrated RFID Reader Antenna

Model: APRIA90010CD

Frequency Range: 902-928MHz

Polarization: Circular

Gain: 10dBi

Descriptions

  • 902-928MHz
  • 10dBi
  • Circular Polarization
  • 420*240*60mm

Applications

  • RFID logistics tracking
  • Warehouse management
  • Door control system
  • Man management system

Electrical Specifications

Frequency

902-928MHz

Gain

10dBi

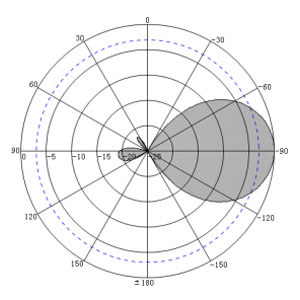

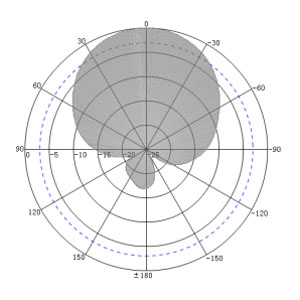

Beam width

Hor:65°  Ver:65°

Polarization

Circular

VSWR

≤1.4

F/B Ratio

≥20

Impedance

50Ω

Maximum power

50W

Lightning protection

DC Ground

Connector

Customized

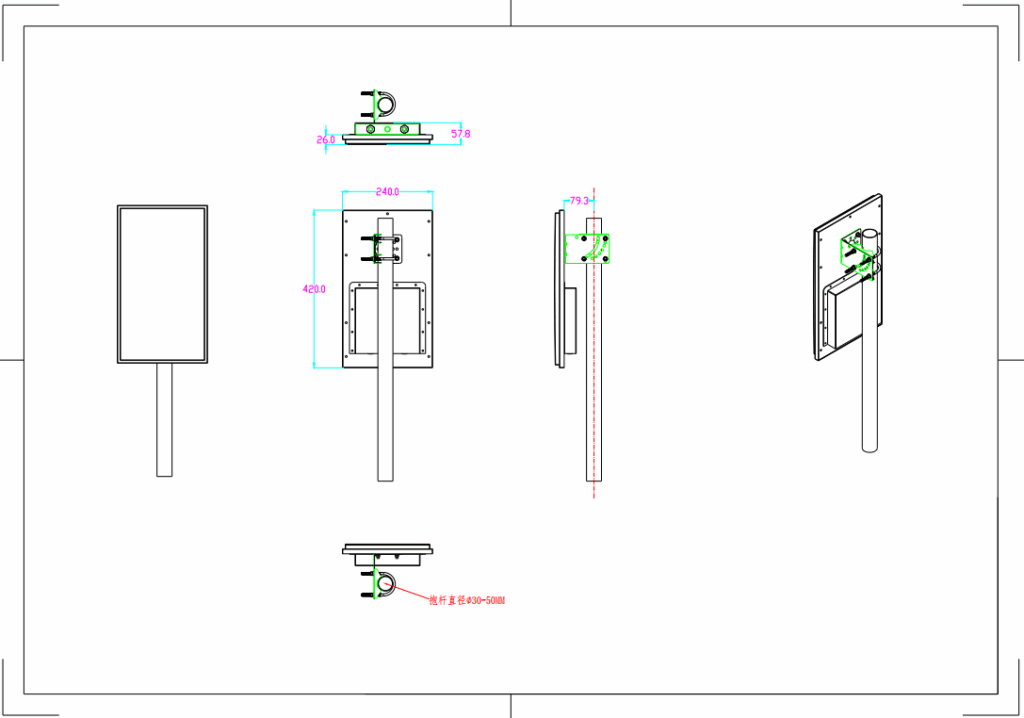

Mechanical Specifications

Dimension

420*240*60mm

Net weight

1.37kg

Packing size

45*25*7cm

Gross weight

2.4kg

Radome material

ABS

Radome colour

White

Pole Diameter

Φ30-50mm

Rated wind velocity

60m/s

Operating temperature

-40-70℃

Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more FCC UHF Integrated RFID Reader Antenna products.
